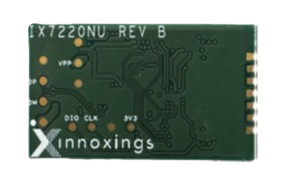

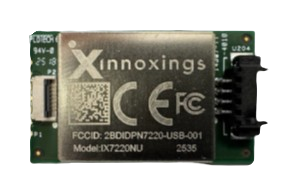

InnoXings IX7220NU is full featured NFC module designed for integration in portable equipment, it is Optimized for low power consumption in different modes (standby, active).

As an NCI 2.2 compliant NFC controller with high RF output (2 W) and high re-ceiver sensitivity, the IX7220NU is a robust solution for payment terminals and all readers that must generate a strong RF field in a difficult environment.

In addition to the reader/writer functionality, the device supports the host card emulation of ISO14443-A cards up to 848 kbit/s.
The IX7220NU product family supports highly innovative and unique features which do not require any host controller interaction.
These features include dynamic power control (DPC), adaptive waveform con-trol (AWC), and fully automatic EMD error handling.

◼Reader/writer mode: ISO/IEC 14443-A&B, FeliCa™, MIFARE 1K/4K, NFC Forum type 2/3/4A/4B/5, MIFARE card family,            ISO/IEC 15693

◼Card Emulation mode: NFC Forum T4T (ISO/IEC 14443-A)

◼NCI 2.2-compliant protocol

◼NFC Cockpit support

◼USB Host Interfaced

◼NFC Forum compliant (analog and digital), device requirement CR13

◼Contactless EMVCo 3.1 L1 compliant (Analog Pre-Scan)

◼FCC / CE Regulatory Report

◼ Reader/writer mode supporting ISO/IEC 14443-A R/W up to 848 kbit/s

◼Reader/writer mode supporting ISO/IEC 14443-B up to 848 kbit/s

◼Reader/writer mode supporting FeliCa 212 kbit/s and 424 kbit/s (without crypto)

◼Supports reading of all NFC tag types ( type 2, type 3, type 4A and type 4B, type 5 )

◼Reader/writer communication mode for the MIFARE card family including MIFARE Classic Crypto supporting MIFARE                Classic en-/decryption is integrated in hardware

◼Reader/writer mode supporting ISO/IEC 15693 (ICODE)
    - RX: "Manchester" encoding with 424 kHz single-subcarrier (SSC) and 6.6 kBd
    - RX: "Manchester" encoding with 424 kHz single-subcarrier (SSC) and 26 kBd
    - RX: "Manchester" encoding with 424 kHz single-subcarrier (SSC) and 53 kBd- TX: "1 of 4" encoding with 10 % modulation        (53 kBd)- TX: "1 of 4" encoding with 100 % modulation (53 kBd).

◼NFC Forum version 13 compliance for R/W – analog and digital

◼Contactless EMVCo 3.1 compliance for R/W – digital

◼Contactless EMVCo 3.1 compliance for R/W analog can be achieved, but depends on connected antenna geometry and size,            matching network and RF settings.

◼Support Interface USB2.0

◼Support O.S. Android 13 or above

◼Payment terminals following the COTS security requirements with full EMVCo3.1 analog and digital compliancy

◼Multi-Application terminals

◼Ticket validators for the controlling staff in public transport

◼E-Vehicle charging stations

◼Vending machines
