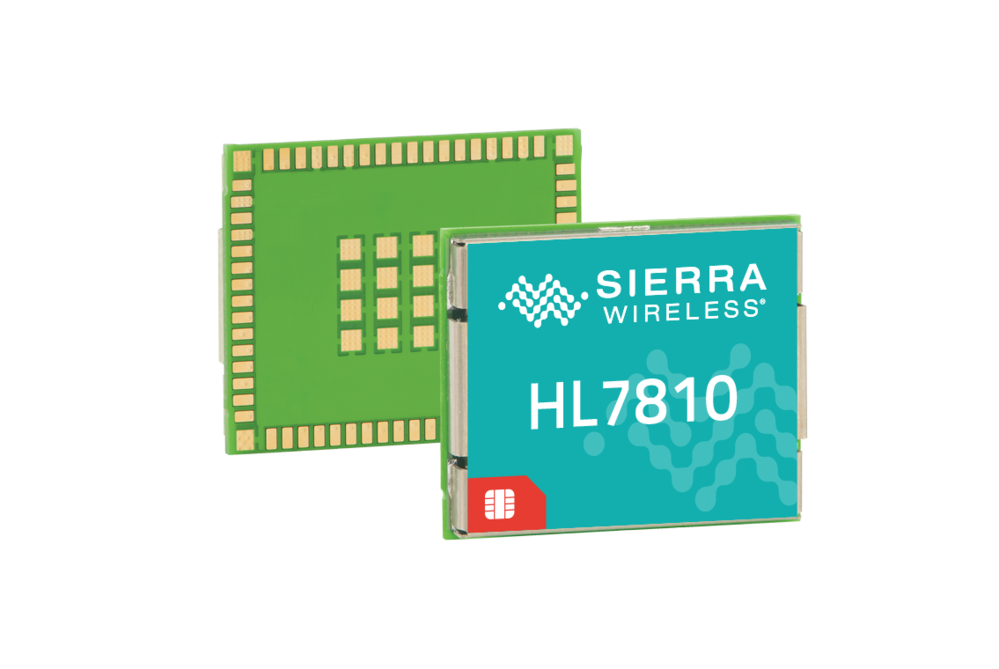

HL7810

Air Interface:
Cat-M1, Cat-NB2, NTN

Region:
Global

LPWA, NTN

Model : HL7810

LTE-M and NB-IoT module offering ultra low power, small footprint and deep coverage

For battery-powered or low power deployments, our HL7810 module supports 3GPP’s Release 14 features and offers best-in-class power consumption, high transmit power and the highest level of security from the edge to the cloud. This ensures field longevity and reduces the risk of your mission critical applications such as asset tracking, smart energy, smart cities and more.

4G LTE
Category	Cat-M1/NB2 (NTN)
Frequency Bands	B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B23, B25, B26, B28, B66, B85, B255, B256

Data Speed
Peak Download Rate	Cat-M: 590 kbps, Cat-NB2: 127 kbps
Peak Upload Rate	Cat-M: 1100 kbps, Cat-NB2: 158 kbps

Location Services
Satellite Systems	GPS & Glonass

Embedded Software
Firmware	Secure boot, Pre-certified firmware

System Drivers
System Drivers	Linux Driver: Standard ACM

INTERFACES
UART	1 X 8-wire
USB	1
ADC	2
GPIO	8
Tx ON Indicator	1
SIM interface 1.8V/3V	1

HARDWARE
CF3 Form Factor	LGA
Dimensions	15x18x2.4mm
Temperature Range	Industrial Grade: -40°C / +85°C

APPROVALS
Regulatory	PTCRB, GCF, FCC (USA), ISED (Canada), CE(EU), JRF/JPA (Japan), KC (Korea), NCC (Taiwan), RCM (Australia)
Carrier	Verizon, AT&T, Orange, Docomo, Deutsche Telekom, Rogers, Skylo Certification (NTN)

EMBEDDED SIM
EMBEDDED SIM	Optional Ready-to-Connect (Semtech USIM)*

CLOUD SERVICES
CLOUD SERVICES	Free FOTA upgrades, Connectivity Management option, Device Management option
