HL7900

Air Interface:
Cat-M1, Cat-NB2, NTN*

Region:
Global

LPWA, NTN

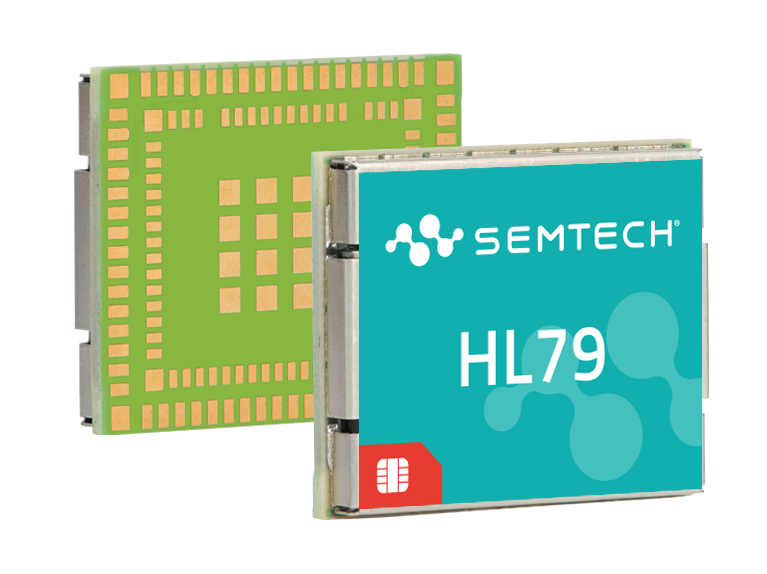

Model : HL7900

The HL7900 5G LPWA module is an advanced solution designed for low-power, long-lasting deployments requiring deep area coverage, combining efficiency, longevity, and security. This ultra-low power module reduces current consumption by up to 80%1, thereby quadrupling the battery life of your IoT deployments. The HL7900 also features integrated GNSS*, and support for 3GPP’s Release 14/15/16/17*, enabling new-generation low-power use cases while providing flexible connectivity options, enhanced coverage, and cost savings. Leveraging Semtech’s 30 years of expertise in low-power solutions and a long-standing partnership with Sony Altair, the HL7900 simplifies and de-risks low-power deployments across critical applications such as smart energy, smart cities, logistics and asset tracking.
1Compared to previous generation HL78 module.

4G LTE
Category	Cat-M1/NB2 (NTN*)
Frequency Bands	B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B23, B25, B26, B28, B66, B85, B255, B256*

Data Speed
Peak Download Rate	Cat-M: 590 kbps, Cat-NB2: 127 kbps
Peak Upload Rate	Cat-M: 1100 kbps, Cat-NB2: 158 kbps

Location Services
Satellite Systems	GPS & Glonass*

Embedded Software
Firmware	Secure boot, Pre-certified firmware

INTERFACES
UART	1 X 8-wire & 1 X 4-wire
USB	0
ADC	2
GPIO	8
Tx ON Indicator	1
SIM interface 1.8V/3V	1

HARDWARE
CF3 Form Factor	LGA
Dimensions	15x18x2.4mm
Temperature Range	Industrial Grade: -40°C / +85°C

APPROVALS
Regulatory	PTCRB, GCF, FCC (USA), ISED (Canada), CE(EU), JRF/JPA (Japan), NCC (Taiwan), RCM (Australia)
Carrier	Verizon, AT&T, KDDI, T-Mobile US, Planned: Docomo, Vodafone

EMBEDDED SIM
EMBEDDED SIM	Optional Ready-to-Connect (Semtech USIM), iSIM*

CLOUD SERVICES
CLOUD SERVICES	Free FOTA upgrades, Connectivity Management option, Device Management option

*Available in a future firmware release
