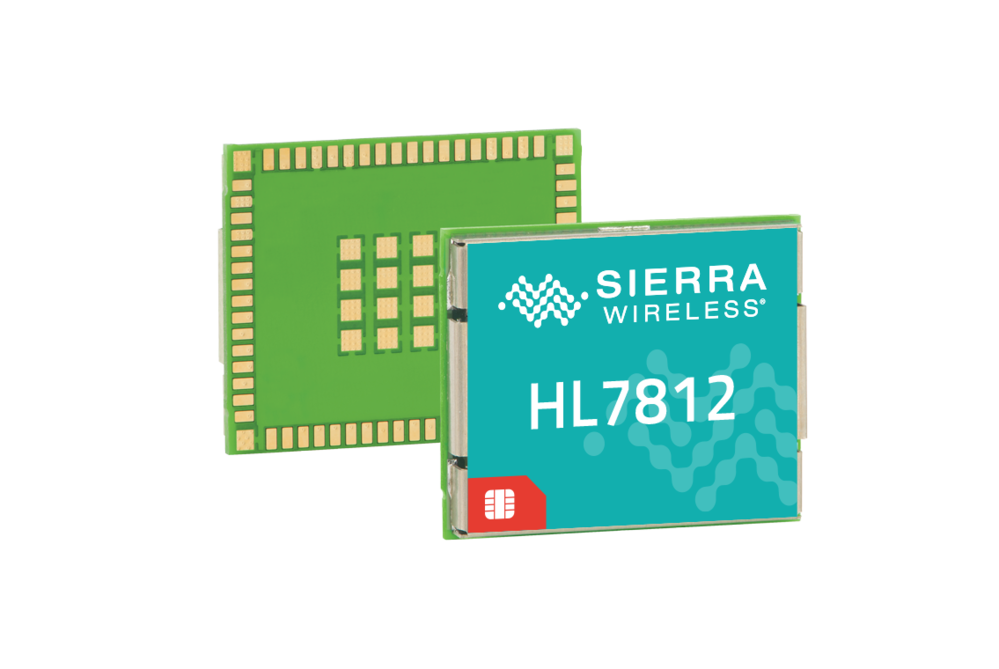

HL7812
Air Interface:
Cat-M1, Cat-NB2 with 2G fallback, NTN
Region:
Global
LPWA, 2G, NTN
Cat-M1, Cat-NB2 with 2G fallback, NTN
Region:
Global
LPWA, 2G, NTN
Model :
HL7812
Global LPWA module with 2G fallback offering ultra low power, small footprint and deep coverage
For battery-powered or low power deployments, our HL7812 module supports 3GPP’s Release 14 features and offers best-in-class power consumption, high transmit power and the highest level of security from the edge to the cloud. This ensures field longevity and reduces the risk of your mission critical applications such as asset tracking, smart energy, smart cities and more.
|
4G LTE
|
|
|---|---|
|
Category
|
Cat-M1/NB2 (NTN)
|
|
Frequency Bands
|
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B23, B25, B26, B28, B66, B85, B255, B256
|
|
2G
|
|
|---|---|
|
Technology Supported
|
GSM, GPRS
|
|
Frequency Bands
|
850, 900, 1800, 1900
|
|
Data Speed
|
|
|---|---|
|
Peak Download Rate
|
Cat-M: 590 kbps, Cat-NB2: 127 kbps
|
|
Peak Upload Rate
|
Cat-M: 1100 kbps, Cat-NB2: 158 kbps
|
|
Location Services
|
|
|---|---|
|
Satellite Systems
|
GPS & Glonass
|
|
Embedded Software
|
|
|---|---|
|
Firmware
|
Secure boot, Pre-certified firmware
|
|
System Drivers
|
|
|---|---|
|
System Drivers
|
Linux Driver: Standard ACM
|
|
INTERFACES
|
|
|---|---|
|
UART
|
1 X 8-wire
|
|
USB
|
1
|
|
ADC
|
2
|
|
GPIO
|
8
|
|
Tx ON Indicator
|
1
|
|
SIM interface 1.8V/3V
|
1
|
|
HARDWARE
|
|
|---|---|
|
CF3 Form Factor
|
LGA
|
|
Dimensions
|
15x18x2.4mm
|
|
Temperature Range
|
Industrial Grade: -40°C / +85°C
|
|
APPROVALS
|
|
|---|---|
|
Regulatory
|
PTCRB, GCF, FCC (USA), ISED (Canada), CE(EU), JRF/JPA (Japan), RCM (Australia)
|
|
Carrier
|
Verizon, AT&T, Orange, Docomo, Deutsche Telekom, Skylo Certification (NTN)
|
|
EMBEDDED SIM
|
|
|---|---|
|
EMBEDDED SIM
|
Optional Ready-to-Connect (Semtech USIM)*
|
|
CLOUD SERVICES
|
|
|---|---|
|
CLOUD SERVICES
|
Free FOTA upgrades, Connectivity Management option, Device Management option
|
