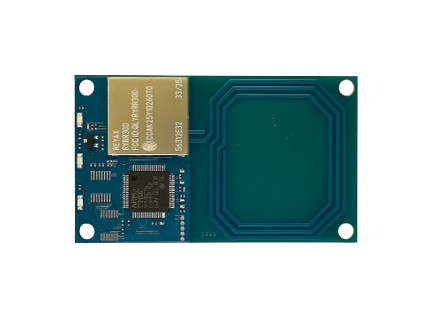

NFC Module
The RYRR30D can read and decrypt Near Field Communication (NFC) pass raw data from Android® or iPhone® devices. The RYRR30D can also read general RFID cards and TAGs and supports multiple protocols.
The RYRR30D supports +3.3V UART / RS-232 and USB2.0 interface. When using the +3.3V UART / RS232 interface, you can use AT command to configure the ID and Key. If decrypt NFC pass is successful, The NFC pass raw data will be output from the +3.3V UART / RS-232 interface.
When using the USB2.0 interface, you can edit the text file to configure the ID and Key. If decrypt NFC pass is successful, The NFC pass raw data will be output from the keyborad interface.
The RYRR30D supports +3.3V UART / RS-232 and USB2.0 interface. When using the +3.3V UART / RS232 interface, you can use AT command to configure the ID and Key. If decrypt NFC pass is successful, The NFC pass raw data will be output from the +3.3V UART / RS-232 interface.
When using the USB2.0 interface, you can edit the text file to configure the ID and Key. If decrypt NFC pass is successful, The NFC pass raw data will be output from the keyborad interface.
Model :
RYRR30D
- ◆ Apple® Wallet VAS & Google® SmartTap pass Certification.
- ◆ Apple® ECP V1.0 compliance.
- ◆ Support 6 x Apple merchant IDs and 6 x Google collector IDs.
- ◆ Supports Near Field Communication (NFC) Standards NFCIP-1 (ISO/IEC 18092) Active P2P.
- ◆ Completely Integrated Protocol Handling for ISO15693, ISO14443A, ISO14443B and FeliCa
- ◆ Firmware upgrade via UART Interface.
- ◆ Operation Temperature range: -40 to +85°C.
- ◆ Certification: FCC, NCC
◆Operation Voltage:Typical +5V
◆RF Output Power:30dBm
◆RF Transmit(Peak current):550mA
◆Average Current:150mA
◆Communication Range:3cm(iPhone 14 Pro)
◆Digital I/O Voltage:+3.3V (TXD/RXD/ INDICATOR_OUTPUT/NRST)
◆RS-232 TXD/RXD: Min.-7V~Max.+7V
◆USB Version:USB2.0
◆Reset Time: 100ms
◆Baud Rate:115200bps
◆RF Frequency Range:Typical 13.56MHz
◆Operating Temperature:-40~+85˚C
◆Antenna: Internal
◆Weight:11.7g
